Controlador do Motor de Ajuste Elétrico para a Frente e Reverso w Brushless Salão dc Motor Driver 3 Fase 20a 6 V-72 v 450

Opção de Compra 1: Como Pessoa Física

Para mais informações sobre esse Produto com preço Promocionais e forma de
entrega, visite o portal da loja

QUERO MAIS DETALHES

Opção de Compra 2: Comprar no Atacado Como Pessoa Jurídica

Se você é uma Empresa e quer comprar no Atacado importando como Pessoa Jurídica com preços ainda mais Baixo,
então, conheça mais opções de produtos similares siga os Passos Abaixo:

1. Acessa o Portal no site do link do banner Abaixo
2. Na próximapágina, Pesquise pelo Produto Desejado
3. Veja as Opções de Preços e Quantidade
4. Se o site estiver em inglês, caso precise, use a opção de traduzir idioma
5. Faça o Cadastro para Login no Menu Cadastro
6. Entre em contato Com o Fornecedor Usando o Chat Messeger ao Vivo na página de Produto que Você Selecionou
7. Inicie as Negociações de Compra

Obs: É Possível que muitos desses fornecedores deixem você solicitar material de demostração ou personalizar o produto com a sua marca

QUERO COMPRAR NO ATACADO

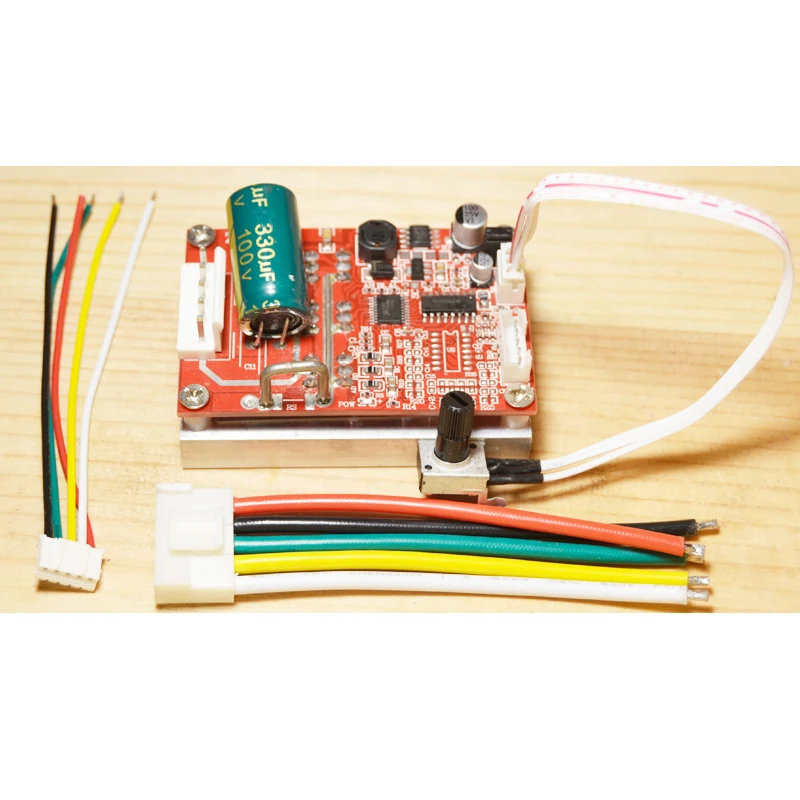

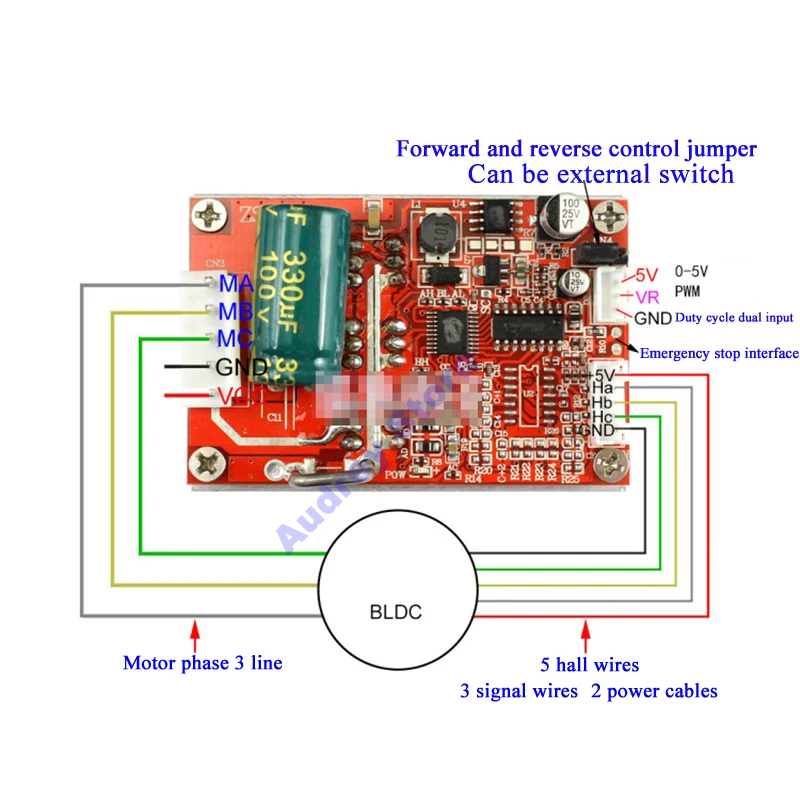

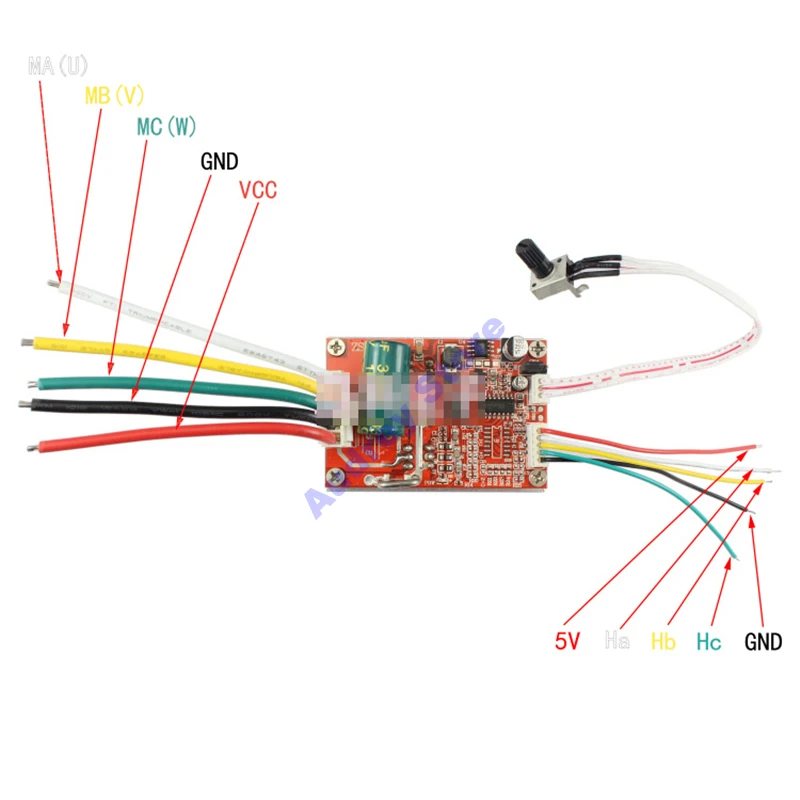

This driver controller is a customized version, Forward and reverse function, Brake function, With potentiometer to control speed, Suitable for most three-phase DC BLDCM with hall. Controller ultra wide voltage, 6.5v-50v. Rated current: 16a, Maximum limit current: 20A (need to add fan for strong heat dissipation). It is suitable for scenes with higher volume requirements than Luo. Interface Description: 1. Ma MB MC: phase line output connected to motor 2. 5V GND: the main board is equipped with 5V power supply (the current is not more than 30mA) 3. VCC GND: motor main power supply (external DC power supply) 4. SC: speed pulse signal output 5. Forward and reverse: forward and reverse control interface (or lead external switch) 6. VR: speed control signal input (on board potentiometer speed control can also be externally connected with 0-5V analog PWM duty cycle to support dual signal input speed control) 7. Ha HB HC + 5V GND: Hall signal power supply input, generally motors with hall have corresponding 5 wires Generally, there are 5 hall cables on the brushless motor, Two of them are hall power lines, Three are Hall signal wires. To distinguish, In particular, do not mistake the power supply line. Three Hall signal wires are connected to the order on the drive board, It can work normally only when it corresponds to the sequence of three phase lines on the motor drive board, If the definition of hall line is not clear, It can be powered on for the first time, Low voltage, low current commissioning, By slowly changing the hall line several times, Until normal operation, Do not debug with high current and voltage, If the hall wires are not in the right order, In case of high voltage and high current test, there is a risk of damage to MOS tube, If the three Hall signal wires are connected correctly, The motor runs silky and smooth, and the torque is large when starting at low speed; If the three Hall signal wires are not connected correctly, they have the following characteristics: 1. The motor cannot be started normally or it is difficult to start (sometimes it needs to be manually turned to start) 2. The motor starts shaking, unable to have bath sound, and the power tube is seriously heated. Humanized settings: Standard configuration: heat sink, outgoing cable, speed regulator potentiometer, power on, time and effort saving. Main board specifications: Product Name: 450W brushless hall DC motor driver Model: zs-x11d1 Working voltage: 6-72v Maximum current: rated 16a, peak 20A Maximum power: 450W Overcurrent protection: Yes Product size: Length: 63mm * width: 45mm * height: 28mm Weight: 93g

1. 20a 6 V-72 v 450 w Brushless – Marca : Shabeam

2. Cheap Acionador do Motor – Fonte de Alimentação : dc

3. do Motor de Ajuste Elétrico para a Frente e Reverso – Motor : dc do Motor

4. 20a 6 V-72 v 450 w Brushless – Marca : Shabeam

5. Cheap Acionador do Motor – Fonte de Alimentação : dc

6. do Motor de Ajuste Elétrico para a Frente e Reverso – Motor : dc do Motor

7. 20a 6 V-72 v 450 w Brushless – Marca : Shabeam

8. Cheap Acionador do Motor – Fonte de Alimentação : dc
