Name: Dissipador de Calor Interno Trilho Din Ssr dc 15a 241000vdc Saída 5v 12v 24v 32v Entrada Interruptor Relé
Brand: Distribuição de Materiais Elétricos
SKU: 33013064633
Price: 152.30 BRL
Availability: InStock

Relés Suprimentos e Equipamentos Elétricos

Opção de Compra e tempo de entrega

Aviso Para mais informações sobre esse produto com preço promocionais e forma de entrega, click no botão abaixo e visite o portal da loja

Ficha técnica do produto

Características	Especificações
Fonte de Energia	DC
Tensão	380v
Cutomizado	SIM
Utilização	Propósito Geral
Número do Modelo	Trd1000d15
Carga de Contato	Baixo Consumo de Energia
Característica de Proteção	Selado
Teoria	Relé de Estado Sólido
Nome da Marca	Linkfreely
Origem	CN (origem)
Input Voltage	4.5-32vdc Including 5V 12V 24V DC
Output Voltage	24-1000vdc
Output Current	15A
Size	Miniature

Espaço reservado

1. 32v Entrada Interruptor Relé

dc, 15a, 24-1000vdc, saída 5v, 12v, 24v,

2. Dissipador de Calor Interno Trilho Din Ssr

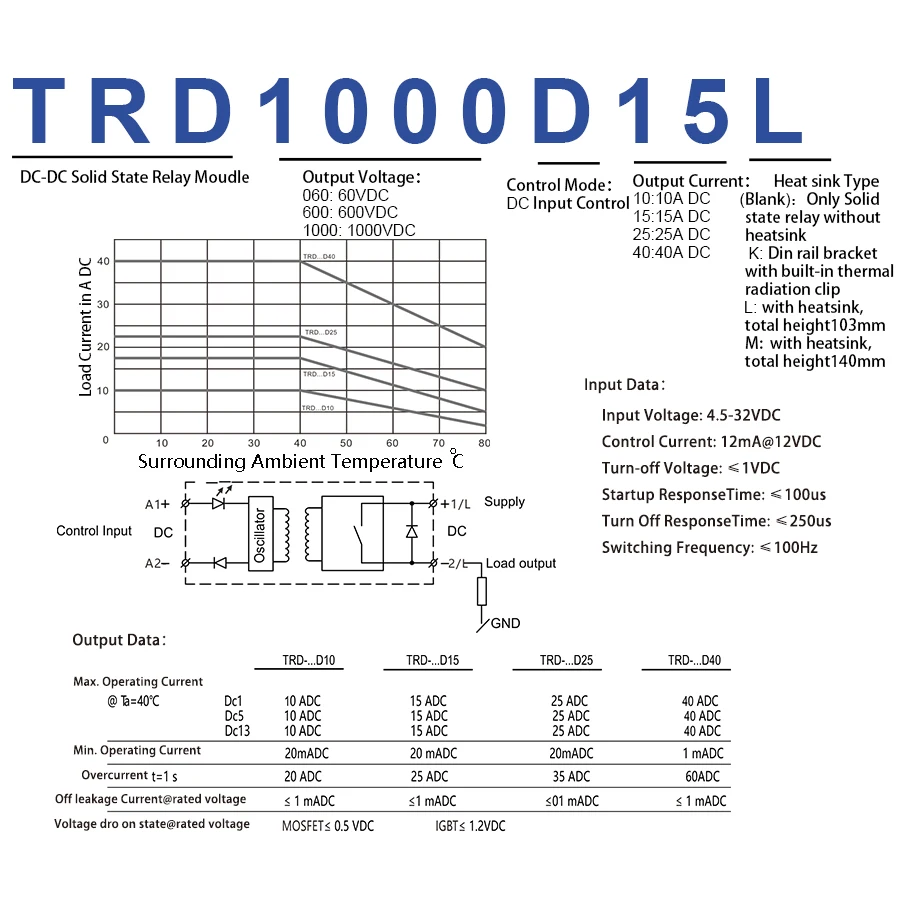

Product Specification

Brand	LinkFreely
Model Part	TRD1000D15L
Zero Cross	Yes
Control Mode	DC DC
Control Voltage	4.5-32VDC
Control Current	12mA@12VDC
Output Voltage	24-1000VDC
Output Current	15A
Min.Operating Curremt	20mADC
Overload Current t=1s	25ADC
Off Voltage	=1VDC
ON Response Time	=100us
Off Response Time	=250us
Switching Frequency	=100Hz
Conotrol Screws	M2.5,torque 0.5Nm
Load Screws	M4,torque 1.5-2.0Nm
Operating Temperature	-20 ? to 70 ?
Built-in Piezoresistors	Yes
Isolation Voltage	>2500V AC
Leakage Current	=1mA
Net weight	157g
Integrated Heat Sink	Yes
Mounting	Panel/DIN Rail

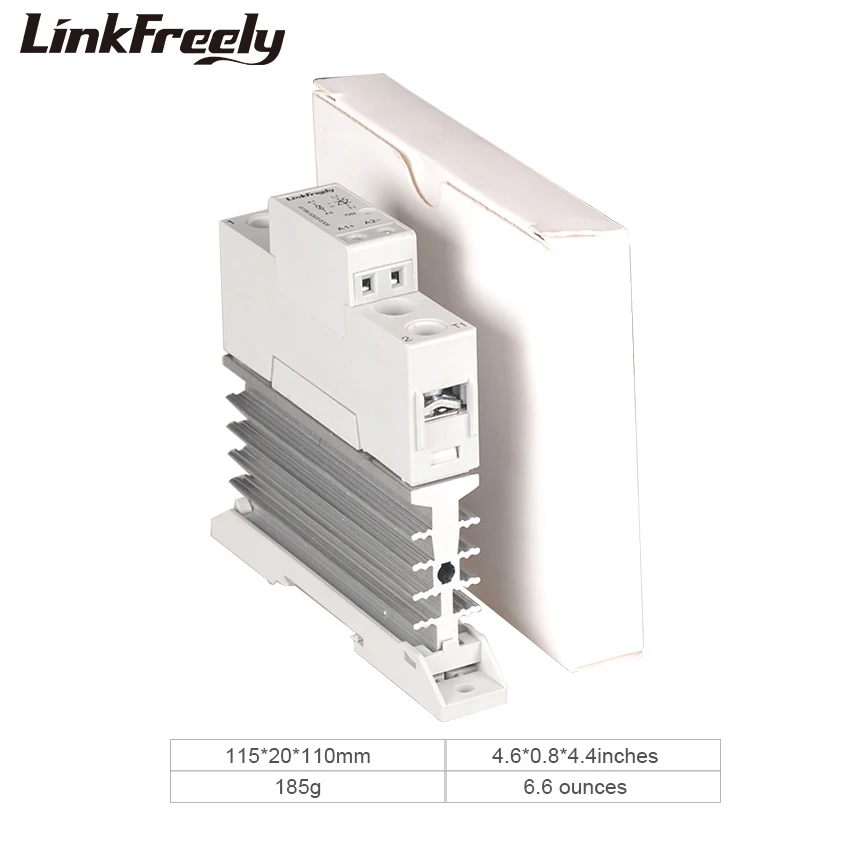

Size(HxWxD)	103mmx17.8mmx113.5mm

Detailed Product Features

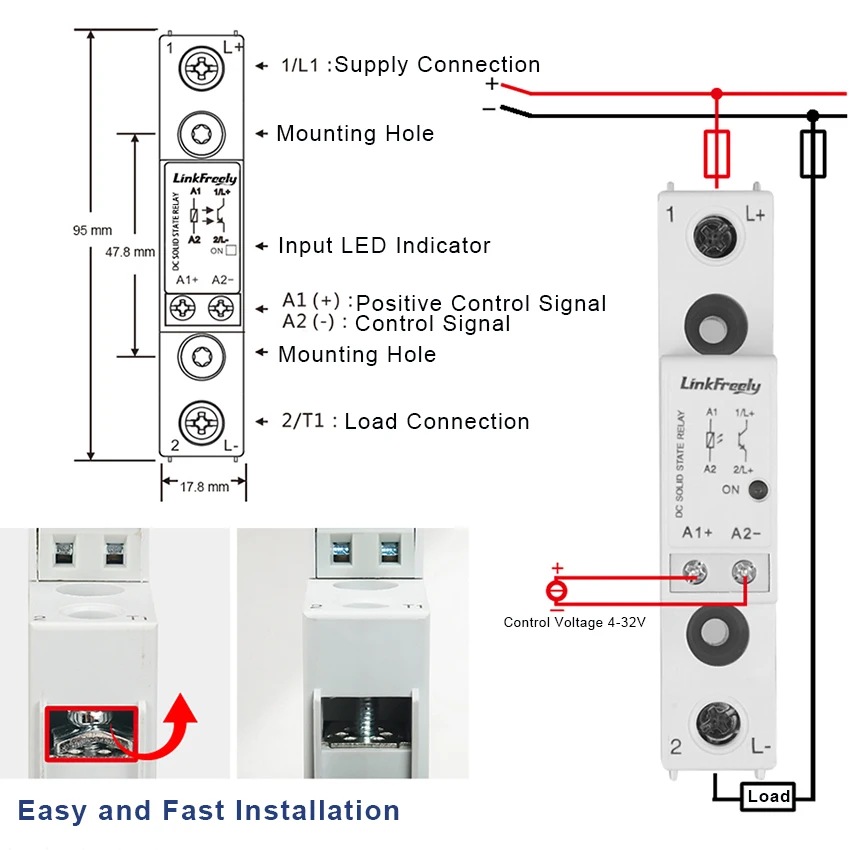

Easy and Fast Installation

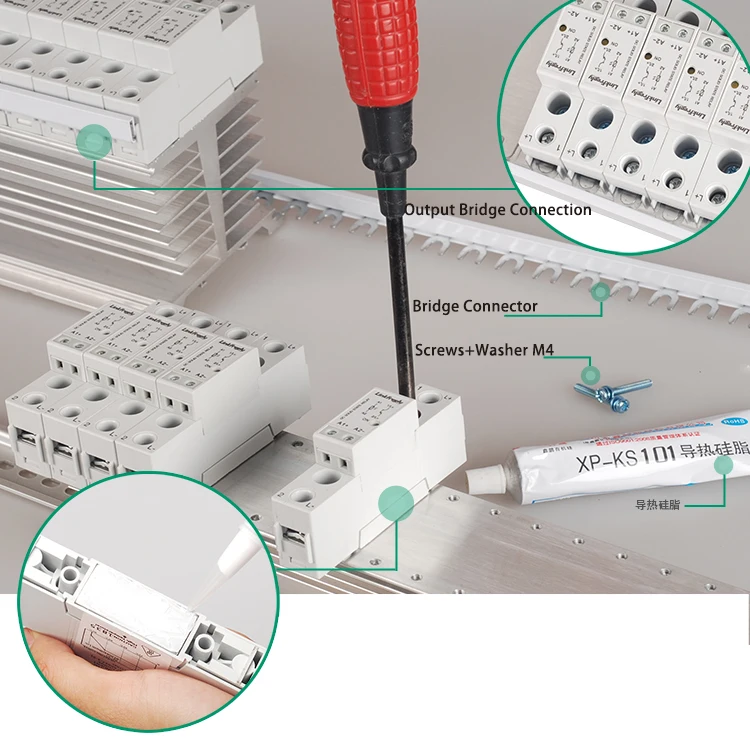

·Box clamp variants provide robust for easy and fast connection of power cables up to 25mm^2/AWG3 for control input ,up to 2×1.0…6mm^2 for load connection. ·The output can be connected by plug-in bridge connector.	3. Cheap Relés

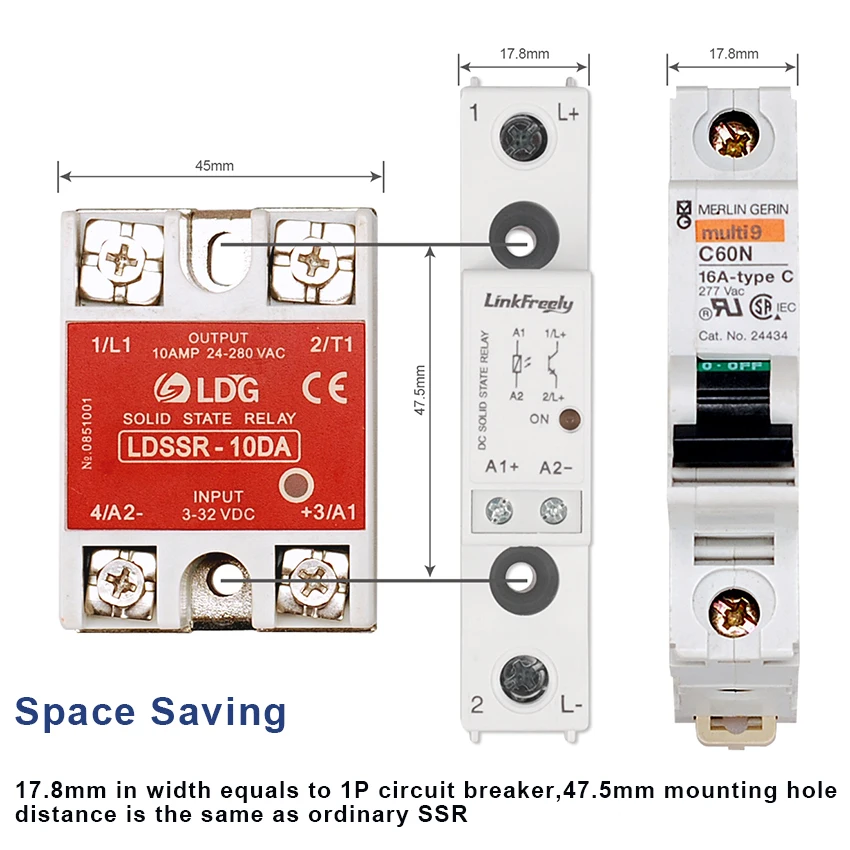

Space Saving

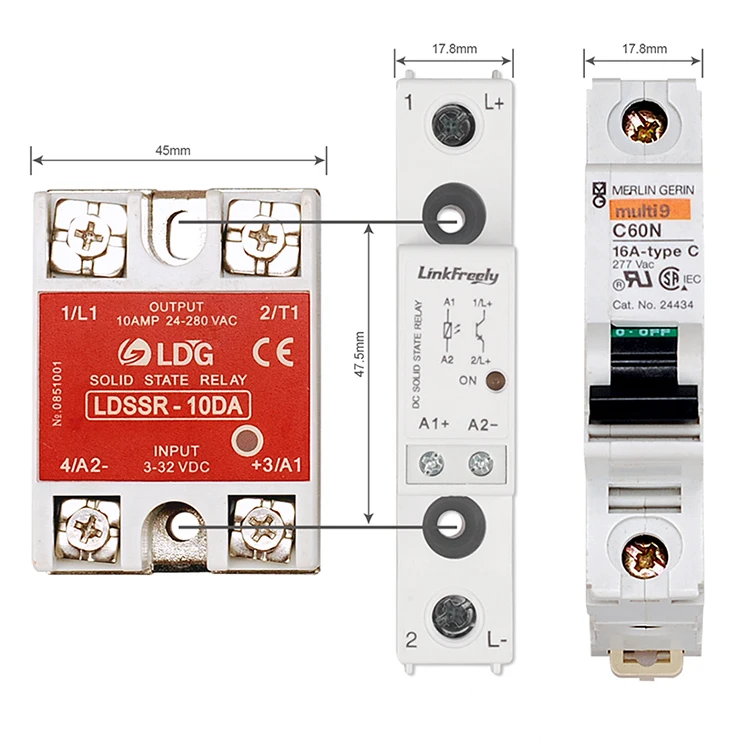

4. 32v Entrada Interruptor Relé	·17.8mm product width giving a 60% space saving per SSR compared to the 45mm solutions. ·17.8mm in width equals to 1P circuit breaker,47.5mm mounting hole distance is the same as ordinary SSR.
High Reliability,Protection of Circuit Equipment Safety
·Inner components comply with UL,VDE,CE and CSA standards,the product itself complies with CE ,together channelling our products to international stardards. ·Isolation voltage>2500VAC ·SMD mount technology ·V0 grade flame retardant plastic housing	5. Dissipador de Calor Interno Trilho Din Ssr

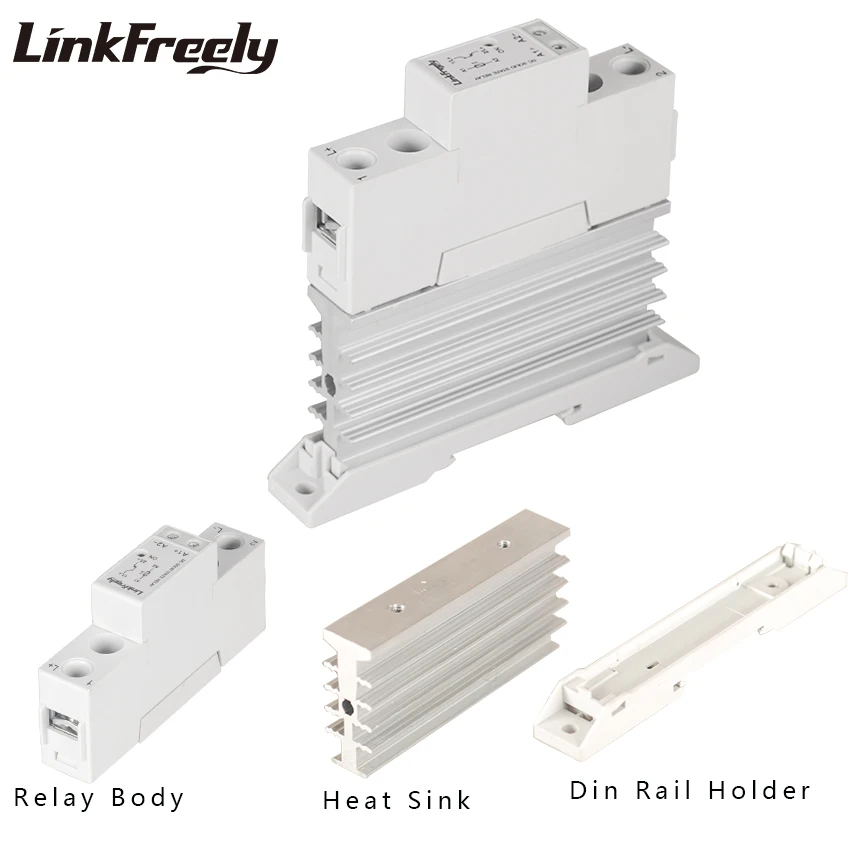

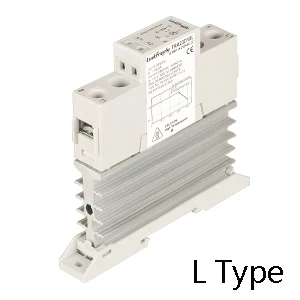

6. Cheap Relés	·TR solid state relay with integrated heat sink in design can be mounted on standard 35mm din rail.
TR Power Bank

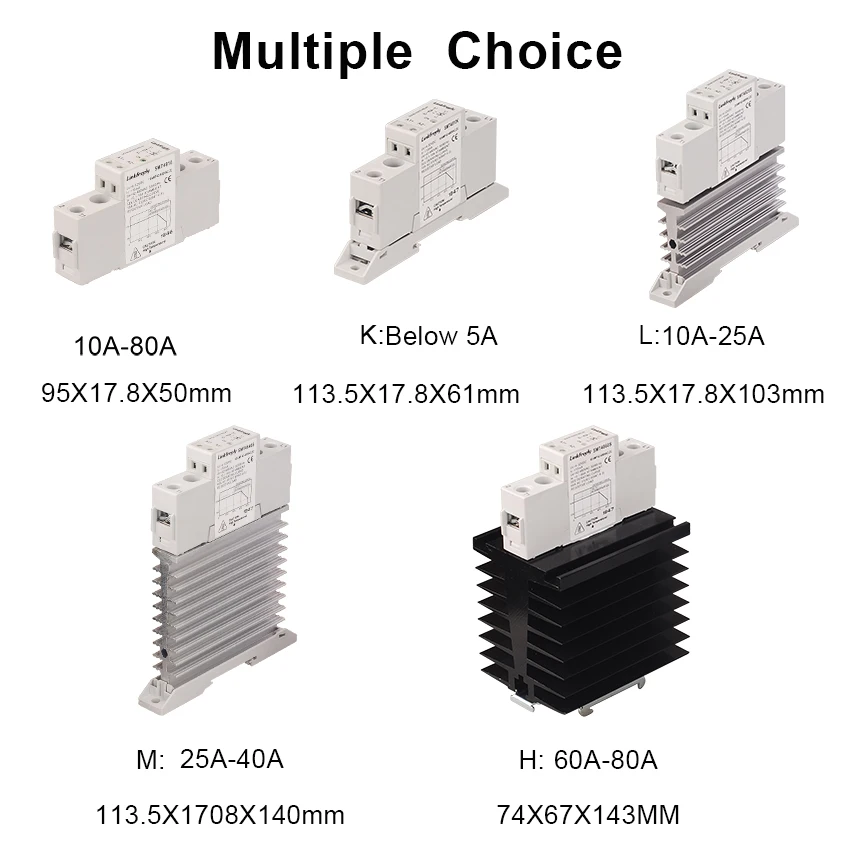

·Alternative heat sink can be available ,customers are free to choose.	7. 32v Entrada Interruptor Relé

8. Dissipador de Calor Interno Trilho Din Ssr	TRA23* AC Solid State Relay Input:3-32VDC Output:24-280VAC


	TRA48* AC Solid State Relay Input:4-32VDC Output:42-480VAC
9. Cheap Relés

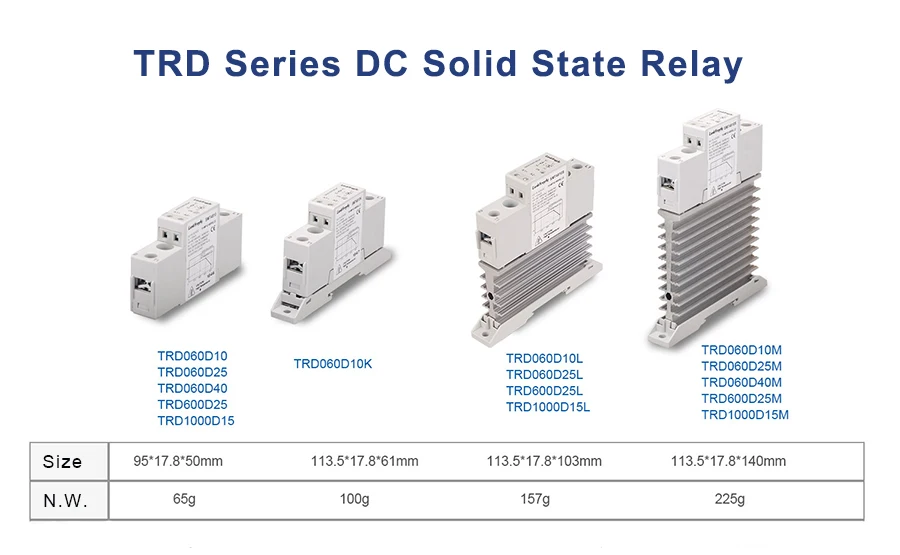

	TRD DC Solid State Relay Input:4.5-32VDC


	10. 32v Entrada Interruptor Relé	11. Dissipador de Calor Interno Trilho Din Ssr	12. Cheap Relés
