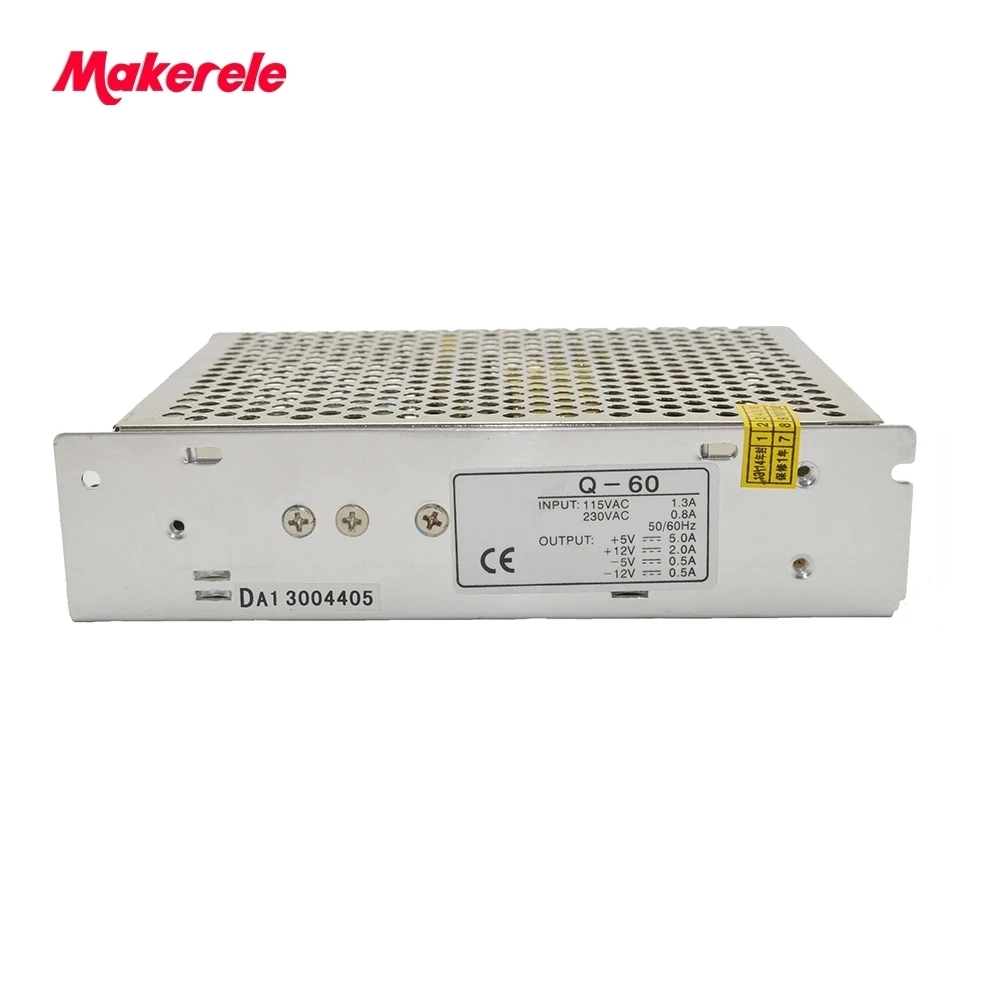

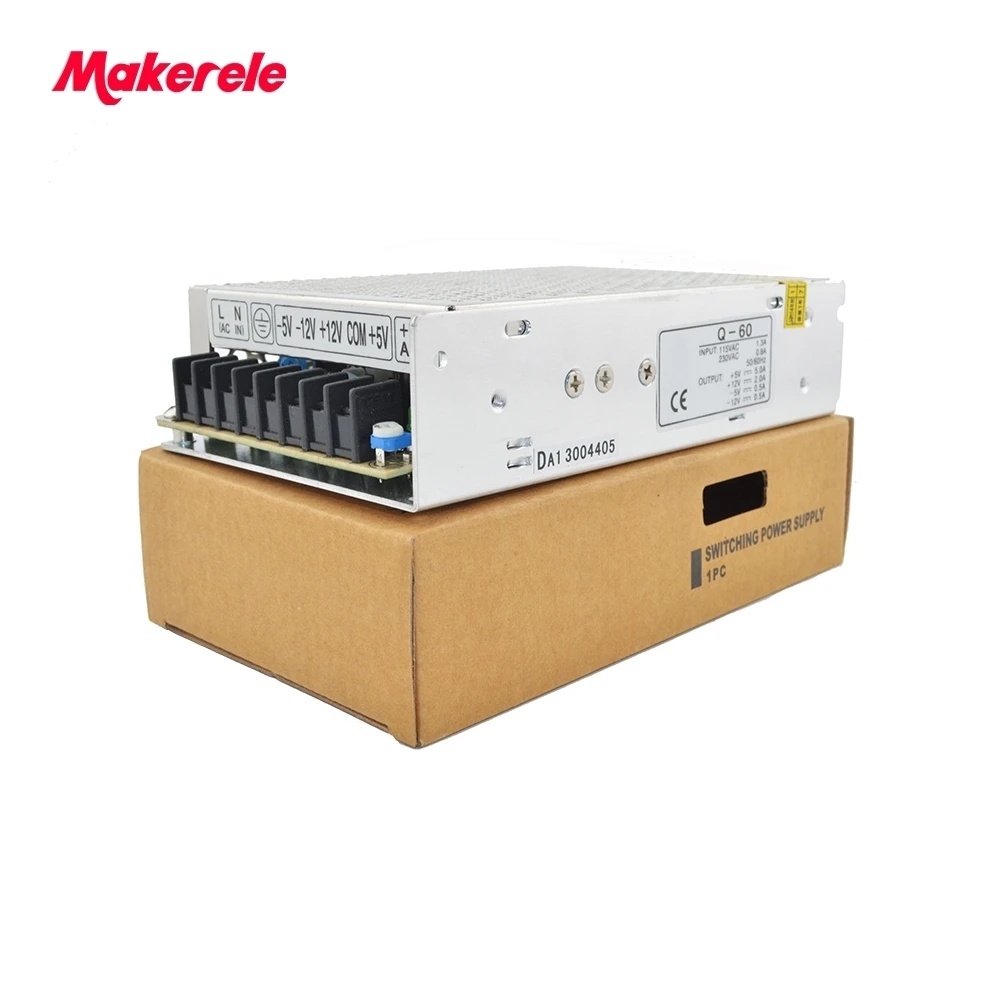

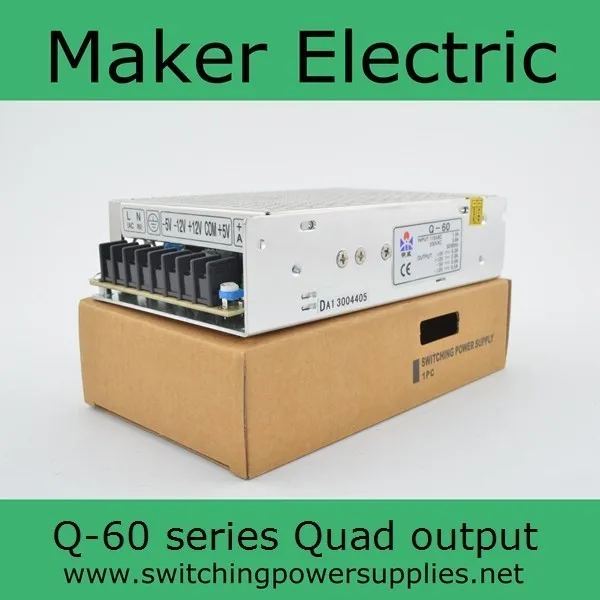

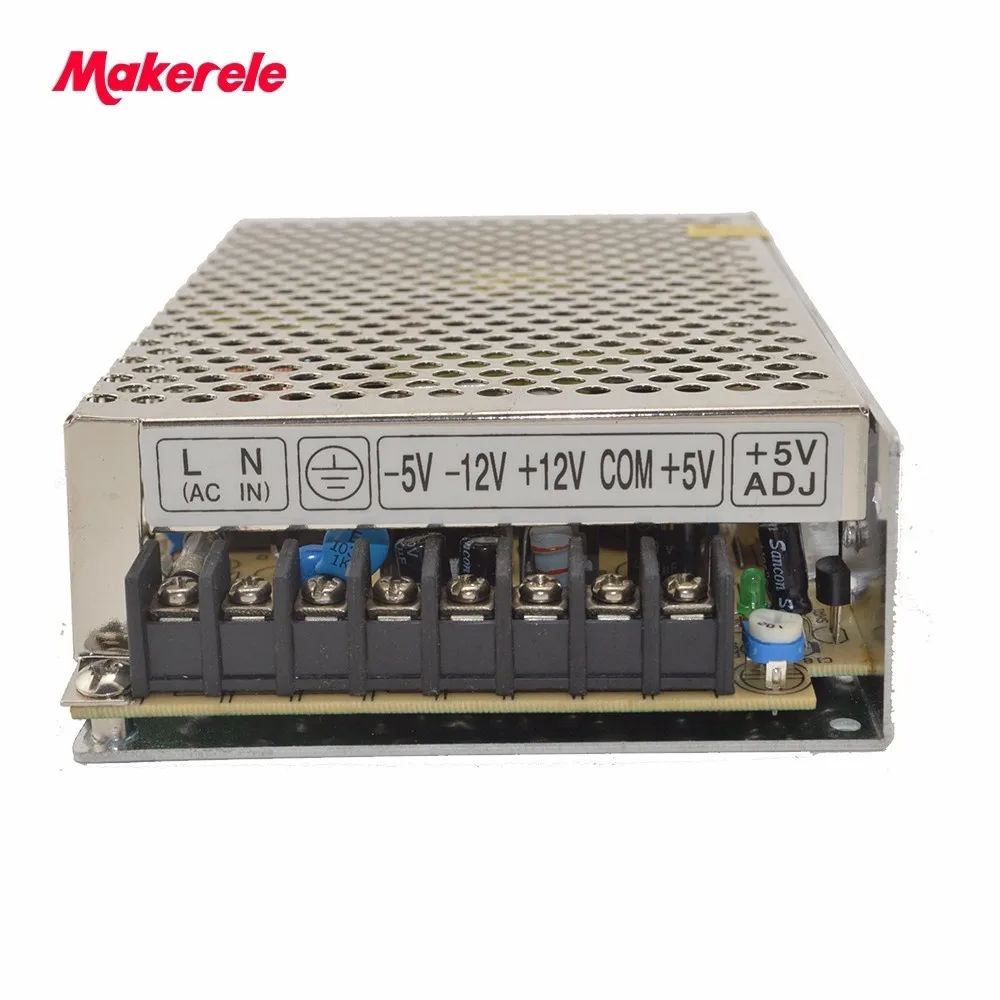

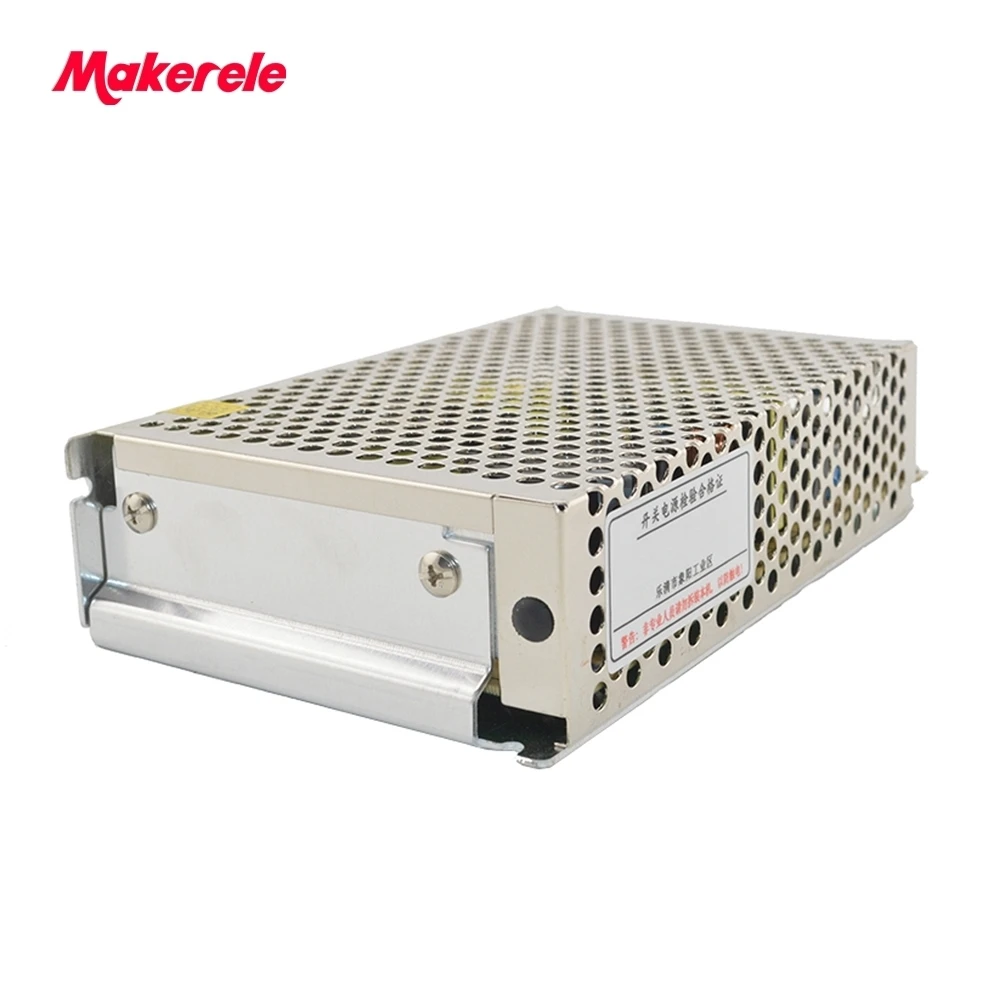

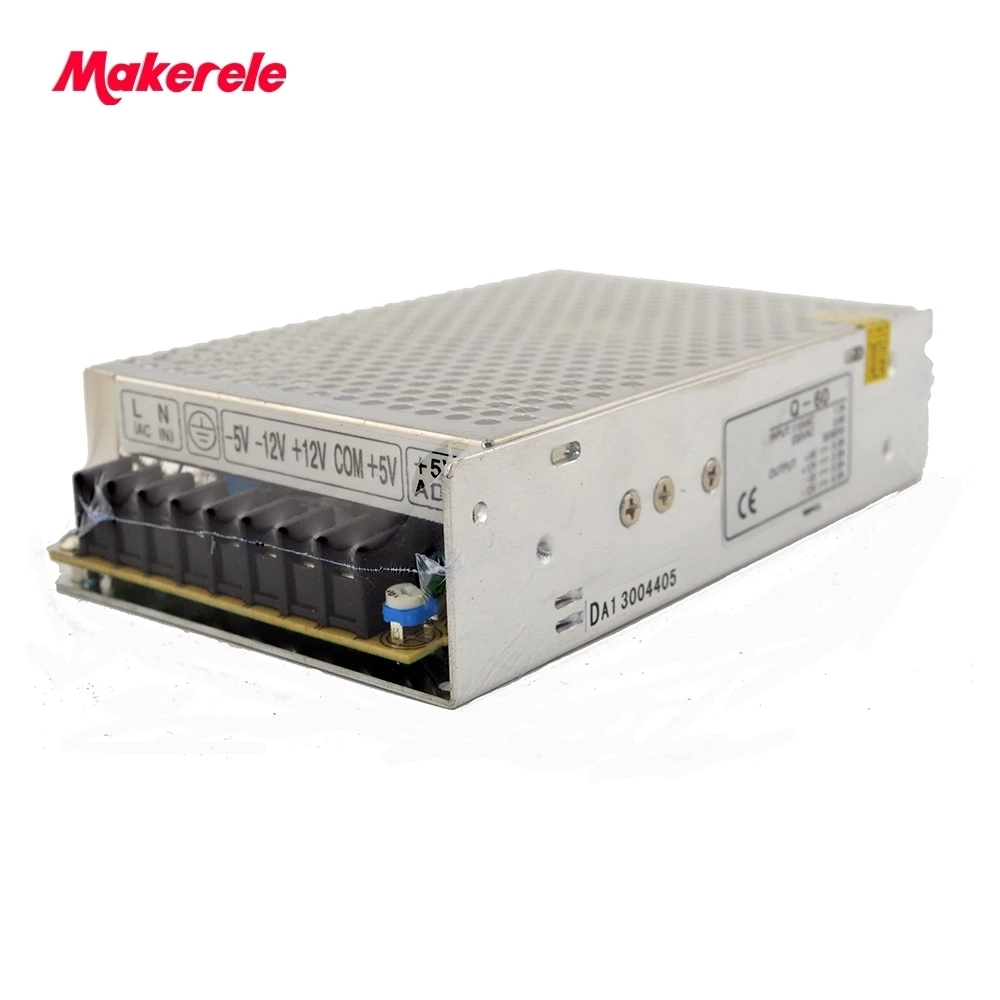

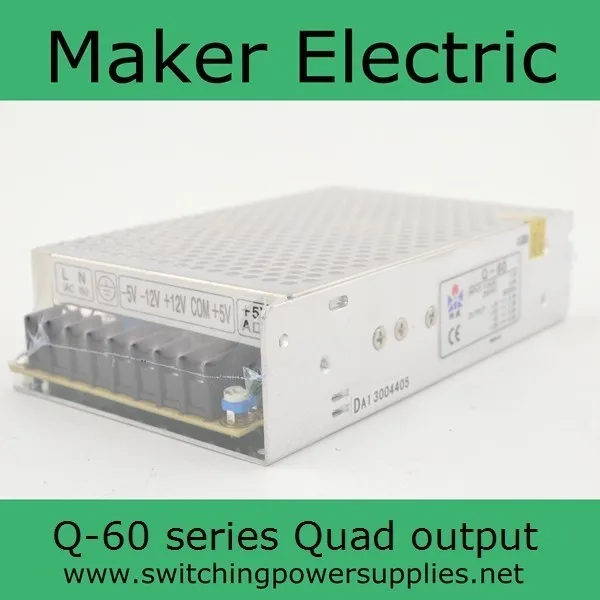

Output tipo Can 12v 24v -12v Quad be Customized Switching Power Supply 4a 1a 0.5a ce Approved Q-60d ac 220v to dc 5v
R$ 120,58
DÚVIDAS?
Envie um email para:
Fonte de alimentação de comutação
Compre online Importe Fácil da China Fonte de alimentação de comutação Aproveite as Ofertas para Output tipo Can 12v 24v -12v Quad be Customized Switching Power Supply 4a 1a 0.5a ce Approved Q-60d ac 220v to dc 5v
Opção de Compra 1: Como Pessoa Física
Para mais informações sobre esse Produto com preço Promocionais e forma de
entrega, visite o portal da loja
Opção de Compra 2: Comprar no Atacado Como Pessoa Jurídica
Se você é uma Empresa e quer comprar no Atacado importando como Pessoa Jurídica com preços ainda mais Baixo,
então, conheça mais opções de produtos similares siga os Passos Abaixo:
- Acessa o Portal no site do link do banner Abaixo
- Na próximapágina, Pesquise pelo Produto Desejado
- Veja as Opções de Preços e Quantidade
- Se o site estiver em inglês, caso precise, use a opção de traduzir idioma
- Faça o Cadastro para Login no Menu Cadastro
- Entre em contato Com o Fornecedor Usando o Chat Messeger ao Vivo na página de Produto que Você Selecionou
- Inicie as Negociações de Compra
Obs: É Possível que muitos desses fornecedores deixem você solicitar material de demostração ou personalizar o produto com a sua marca
Informações Técnicas do Produto
| Características | Especificações |
|---|---|
| Marca | Makerele |
| Potência de Saída | 51 – 100w |
| Saída | Quadriband |
| Modelo Número | Q-60d |
| Frequência de Saída | 47~63hz |
| Cutomizado | SIM |
| Corrente de Saída | 4A 1A 1A 0.5a |
| Input Voltage | 85-264 VAC 120-370vdc |
| DC Voltage | 5V 12V 24V -12v |
| Rated Power | 60W |
| AC Current | 2a/115 V 0.8a/ 230 V |
| Voltage Tolerance | 2% 6% +8, -4% 5% |
| Voltage Adj. Range | Ch1: -5%, +10% |
| Inrush Current | Cold Start 18a/115v 36a/230v |
| Efficiency | 75% |
| Safety Standard | Design Refer TO Ul60950 |
| Setup, Rise, Hold UP Time | 1600ms, 20ms, 12ms/115vac 800ms, 20ms, 60ms/230vac AT Full Load |
|
||||||||
|
||||||||
|
||||||||
|
Notice:
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.
Model Q-60B Q-60C Q-60D
Output number CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4
DC Voltage 5V 12V -5V -12V 5V 15V -5V -15V 5V 12V 24V -12V
Rated Current 5.5A 2A 0.5A 0.5A 5.5A 1.5A 0.5A 0.5A 4A 1A 1A 0.5A
Current Range 0.5-8A 0.1-3A 0-1A 0-1A 0.5-8A 0.1-3A 0-1A 0-1A 0.5~8A 0.1~3A 0.1~1.5A 0~1A
Rated Power 60W 60W 60W 60W 60W 60W 60W 60W 62W 62W 62W 62W
Ripple & Noise 100mVp-p 120mVp-p 100mVp-p 120mVp-p 100mVp-p 120mVp-p 100mVp-p 120mVp-p
100mVp-p 120mVp-p 150mVp-p 120mVp-p
Voltage Adj. Range CH1:-5%,+10% CH1:-5%, +10% CH1:-5%, +10%
Voltage Tolerance 2% 6% 5% 5% 2% +8,-4% 5% 5% 2% 6% +8,-4% 5%
Setup, Rise, Hold Up Time 1600ms,20ms,12ms/115VAC 800ms,20ms, 60ms/230VAC at full load
INPUT
Voltage Range 85~264 VAC 47-63Hz;120~370VDC
AC Current 2A/115 V 0.8A/ 230V
Efficiency 70% 72% 75%
Inrush Current Cold start 18A/115V 36A/230V
Leakage Current
PROTECTION
PROTECTION the intermittent automatic recovery
Over Load 105%~150% /115VAC
Protection type: Shut down output, the intermittent automatic recovery
Over Voltage 5V:115%~135%
Protection type: Burping mode, automatic recovery
ENVIRONMENT
Working Temp., Humidity -10C~+60C;20%~90 %RH
Storage Temp., Humidity -20C~+85C;10%~95 %RH
Vibration 10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard Design refer to UL60950
EMC Standard Design reefer to EN55022,EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204
OTHERS
Dimension 159*97*38mm(L*W*H)
Weight 0.56Kg
Packing 30pcs/17.3Kg/0.99CUFT
NOTE:
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1 & 47 parallel capacitor.
3.Each output can within current range. But total output power cant exceed rated load.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

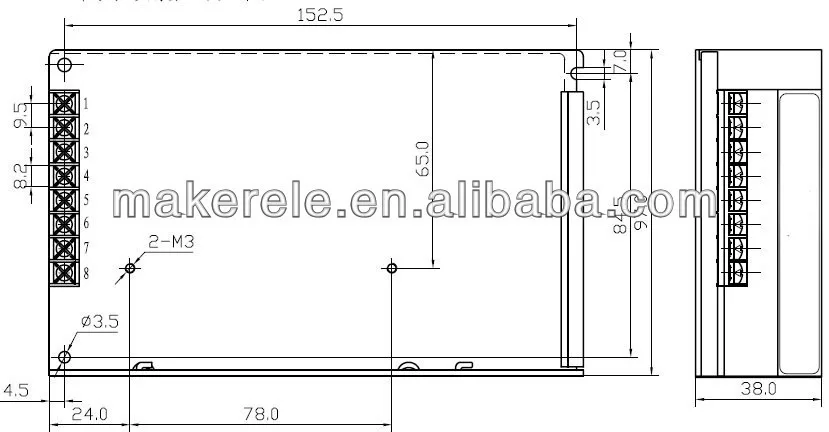

Product Size:
20. ac 220v to dc 5v 12v 24v – Efficiency : 75%
21. Fonte de Alimentação de Comutação – Inrush Current : Cold Start 18a – 115v 36a – 230v
22. -12v Quad Output tipo Can be Customized – Voltage Adj. Range : Ch1: -5% +10%
23. Cheap Fonte de Alimentação de Comutação – Voltage Tolerance : 2% 6% +8-4% 5%
- 1. Item will be shipped within 5-7 business days.
- 2. Delivery Time:
- —-Via Air: Generally 1-3 working days
- —-Via Express: Generally 3-7 working days.
- —-Via China Post Air Mail: Generally 15-25 working days
- —-Via Sea: According to the order.
- 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
- Custom Product Design
- OEM/ODM
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Notes on choosing a switching power supply
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
- What are switching power supplies
- Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
What about production process of switching power supply
24. Switching Power Supply 4a 1a 1a 0.5a ce Approved Q-60d – ac Current : 2a – 115 v 0.8a – 230 v
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:
Yueqing Maker electric Co., Ltd. concentrates on Import and Export.
Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
25. ac 220v to dc 5v 12v 24v – Rated Power : 60w
26. Fonte de Alimentação de Comutação – dc Voltage : 5v 12v 24v -12v
27. -12v Quad Output tipo Can be Customized – Input Voltage : 85-264 Vac 120-370vdc
|
