Original Genuine Smartgen HGM1790N Generator Set Controller HGM 1790N

HGM1790N generator set controller is suitable for stand-alone automation and monitoring (can also be used for water pump units). The controller can realize the manual start/stop of the unit, and can also automatically start/stop the generator through the remote start signal, monitor and protect the unit by collecting and analyzing data such as power generation voltage, current, water temperature, oil pressure, etc., and indicate at the same time Failure status, convenient and fast maintenance. The controller adopts a patterned liquid crystal display, which is operated with a touch of a button, which is clear and intuitive. It can realize the functions of parameter threshold and delay adjustment through the front panel or USB interface (communication with PC upper computer software).

Performance characteristics

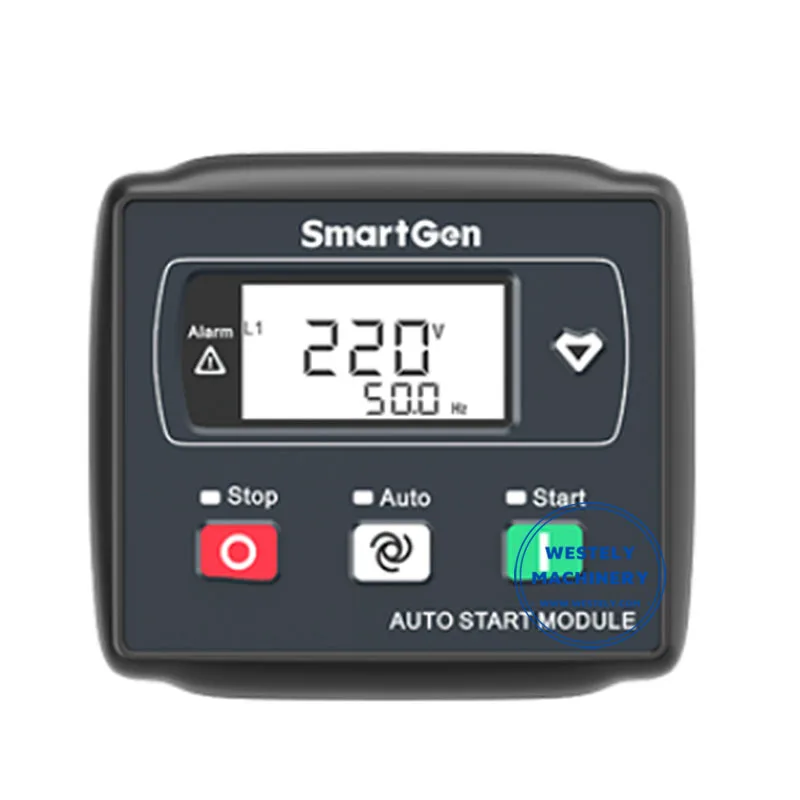

Pattern LCD display (with backlight), LED indicator light, touch button operation;

The screen protection adopts hard-screen acrylic material;

Using silica gel panel and buttons, strong ability to adapt to the high and low temperature of the environment;

The power supply has a wide range of DC (8~35)V, which can adapt to different starting battery voltage environments;

Collect and display single-phase voltage, current, frequency, power, load percentage parameters of power generation:

Generating voltage V Generating frequency Hz

Generating power kW Generating current A

Load percentage%

Accurately collect various parameters of the engine:

Oil pressure kPa temperature °C

Fuel level% accumulative running time H (up to 199999 hours)

Battery voltage V speed RPM

Cumulative number of startups (up to 199999 times, displayed by the host computer)

Unit fault protection and display function;

The controller has 3 working modes: manual, automatic, and stop;

A variety of temperature, pressure, and oil level sensors can be used directly, and parameters can be customized; temperature and pressure sensors can be used in parallel with temperature and pressure alarms, respectively, and one level of protection is added while providing analog values;

Multiple starting success conditions (speed, oil pressure, power generation frequency) can be selected;

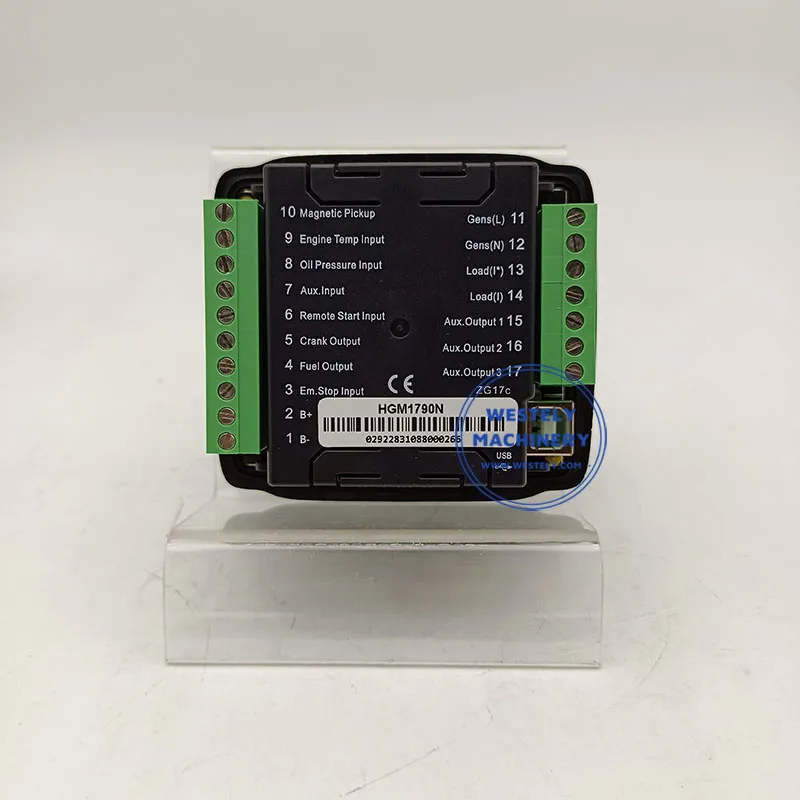

1 programmable input port, which can be set as switch input or liquid level sensor;

2 fixed relay output ports (fuel output, start output);

3 programmable relay output ports, which can be set with functions such as public alarm output, preheat output or idle speed control output;

Parameter setting function: Allow users to change their parameters and they will not be lost when the system is powered off. Most of the parameters of the controller can be adjusted from the front panel of the controller. All parameters use a PC through a USB interface (Type-B) )Adjustment;

All parameters are adjusted digitally, which improves the reliability and stability of the whole machine;

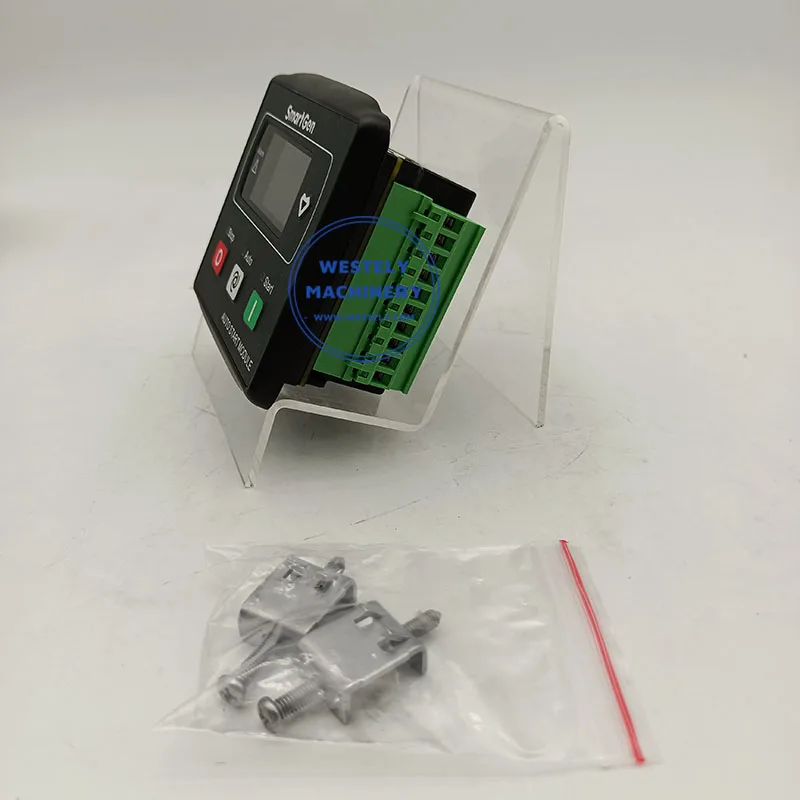

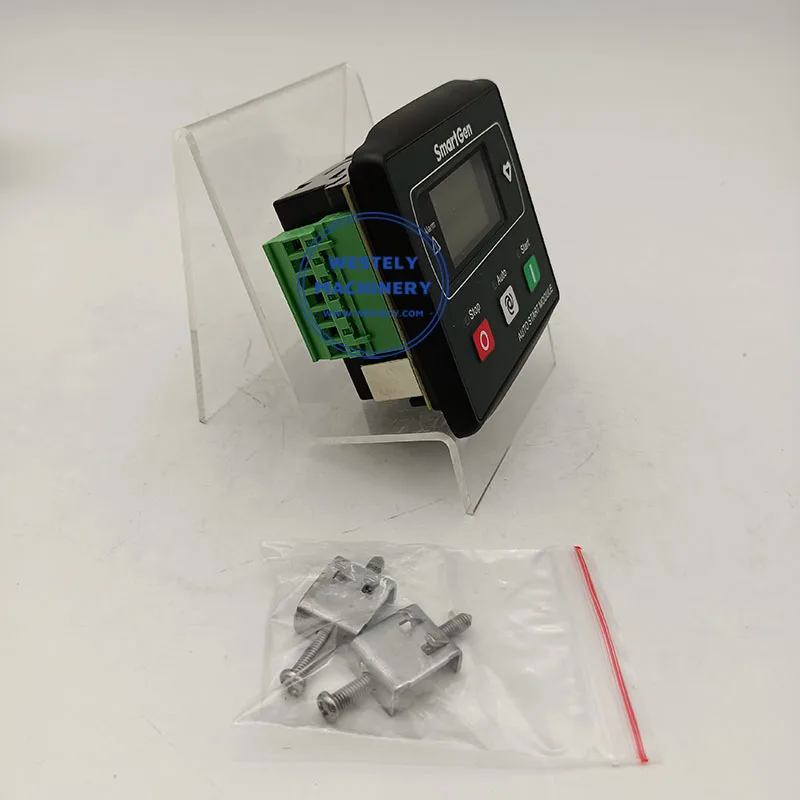

Modular structure design, flame-retardant ABS shell, pluggable terminal blocks, embedded installation method, compact structure and convenient installation.
