- 7%

Oscilador Controlado 80 Oscil120 Mhz da Tensão do Gerador do Sinal de fm Vco.

Original price was: R$ 193,60.Current price is: R$ 180,05.

Adicionado a lista de desejosRemovido da lista de desejos 0
SKU: 32845569254

Contadores

Opção de Compra e tempo de entrega

AvisoPara mais informações sobre esse produto com preço promocionais e forma de entrega, click no botão abaixo e visite o portal da loja

Informações Técnicas do Produto

Características Especificações
Suprimentos Para Bricolagem Elétrico
Tipo Dois Dígitos Contadores
Nome da Marca Tailkuke

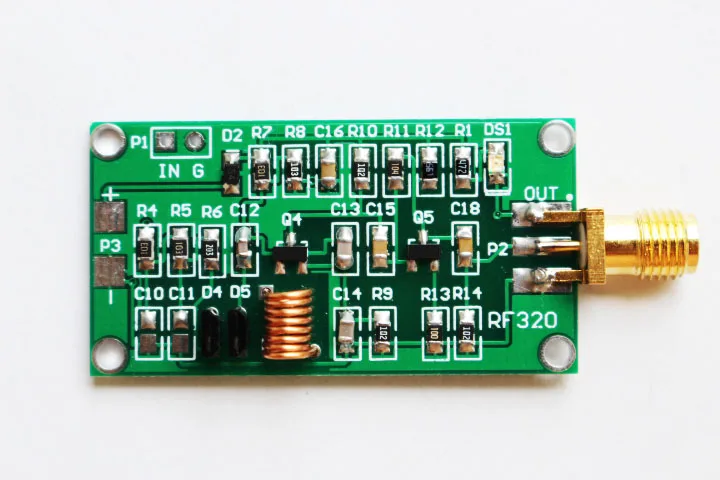

Sinal de fm vco gerador de sinal
1.1 parâmetros do módulo
Unidade de parâmetro
Faixa de frequência de saída 80 mhz 120 mhz
Amplitude de saída máxima <-3dbm dbm
Tensão de funcionamento 3 9 9 v
Tamanho 42*22mm
2 interface p3: +: cátodo de potência;
-: Eletrodo negativo de energia;
Interface p1: em: sinal de entrada vco (0 9 9 v).
G: negativo da fonte de alimentação.
Interface p2: sinal de saída. (Rp sma ke khd furo interno da agulha interna)

'

Oscilador Controlado 80 Oscil120 Mhz da Tensão do Gerador do Sinal de fm Vco.
Oscilador Controlado 80 Oscil120 Mhz da Tensão do Gerador do Sinal de fm Vco.

Original price was: R$ 193,60.Current price is: R$ 180,05.
