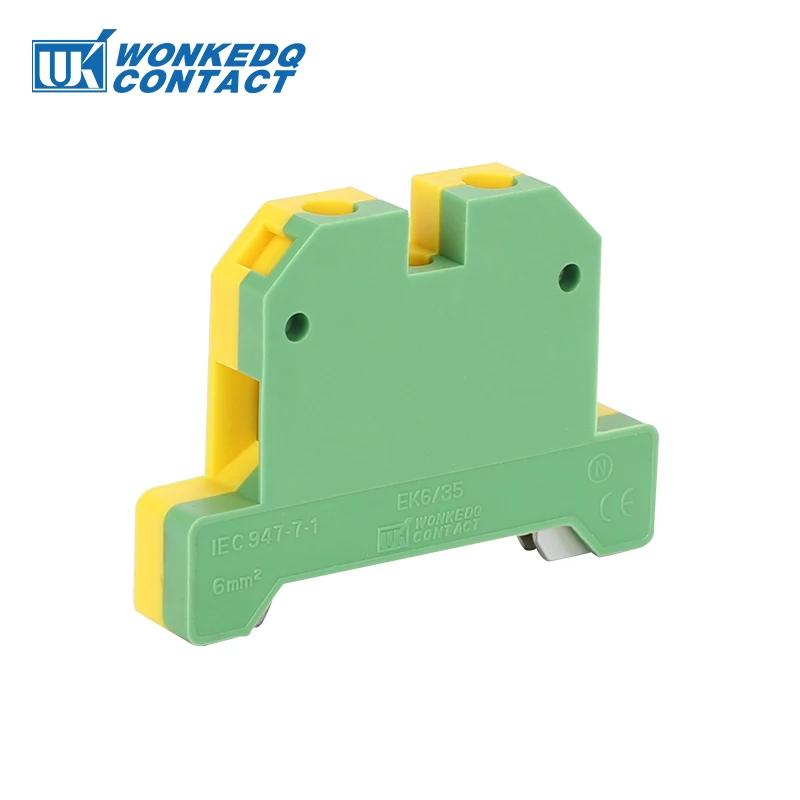

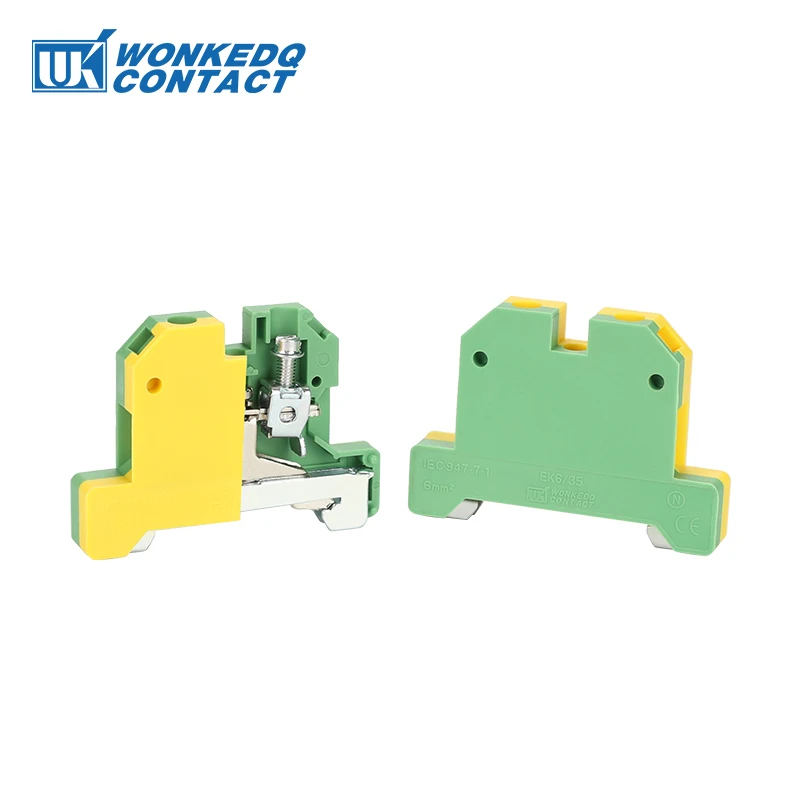

Terminais de Conexão Parafuso Terra Sak Mm² Fio Conector Elétrico Montagem no Bloco Terminal Ferroviário Din Ek6 35 10 Pcs ek 35
Original price was: R$ 83,35.R$ 63,36Current price is: R$ 63,36.
DÚVIDAS?
Envie um email para:
Blocos de Terminais
Vídeo de Demonstração do Produto
Opção de Compra e tempo de entrega
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Cutomizado | SIM |
| Número do Modelo | EK 6/35 |
| Tipo | Parafuso |
| Nome da Marca | Wonkedq |
| Origem | CN (origem) |
| Usage | Distribution Cabinet |
| Application | Electrical Wiring Terminal Block |
| Mounting Type | DIN Rail |

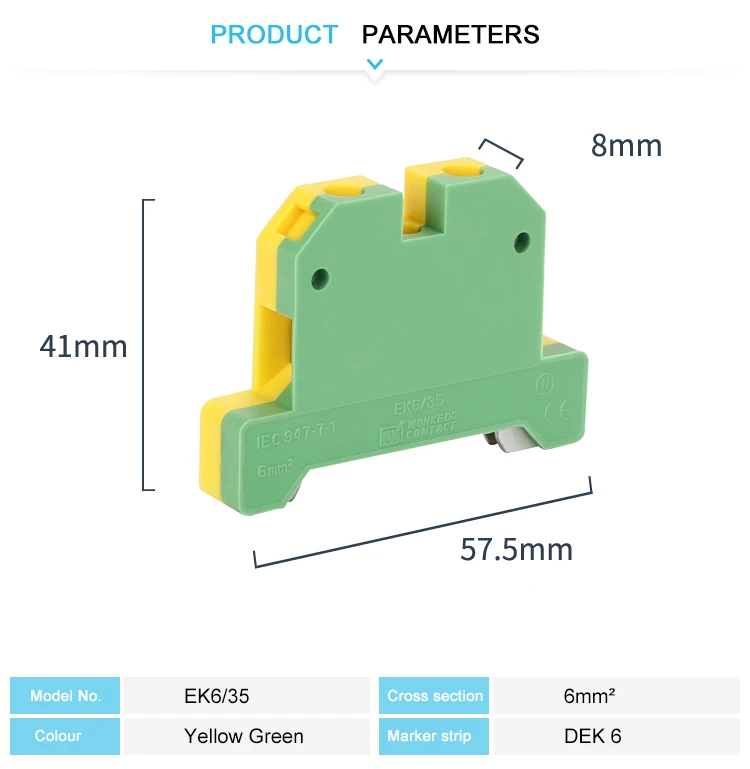

| Size L/h/w | 57.5/41/8mm |
1. 10pcs ek 6 35 Terminais de Conexão
2. Cheap Blocos de Terminais

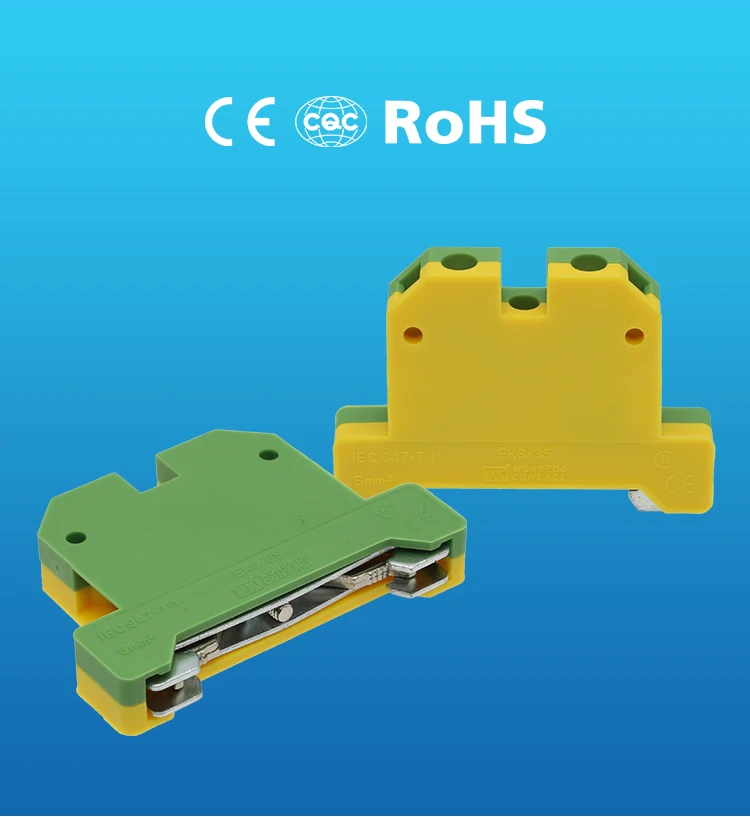

CE/RoHS/CQC/ISO 9001

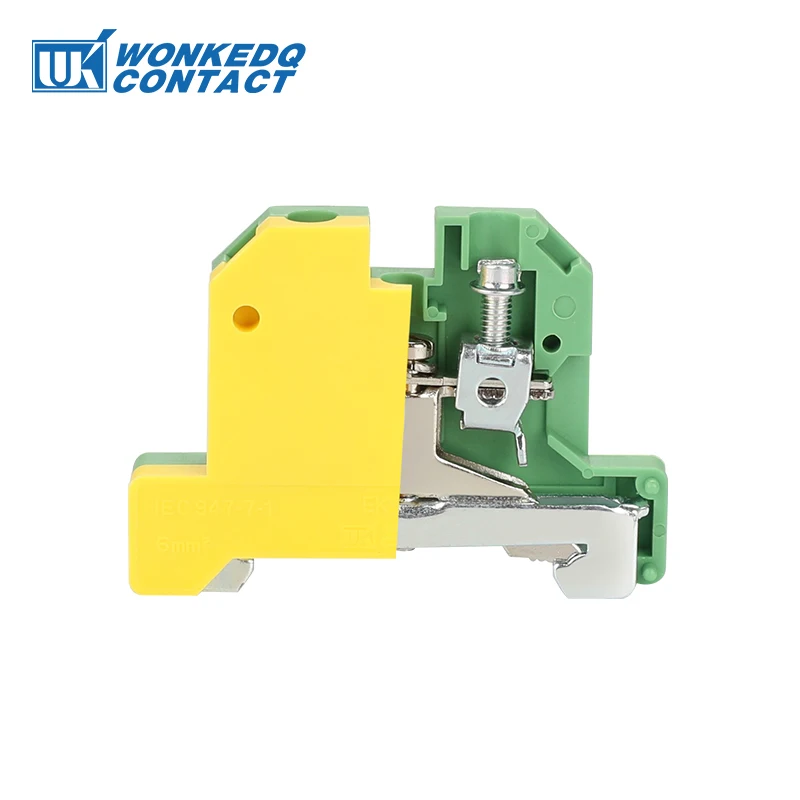

The SAK series terminal blocks with clamping yoke connection make planning easer and operational safety, providing a range of different requirements.
-
Made from engineering antiflaming nylon PA66 with brass screw metal.
-
Maintenance-free and vibration-proof screw connection
-
Low voltage drop and gas-tight contact point
-

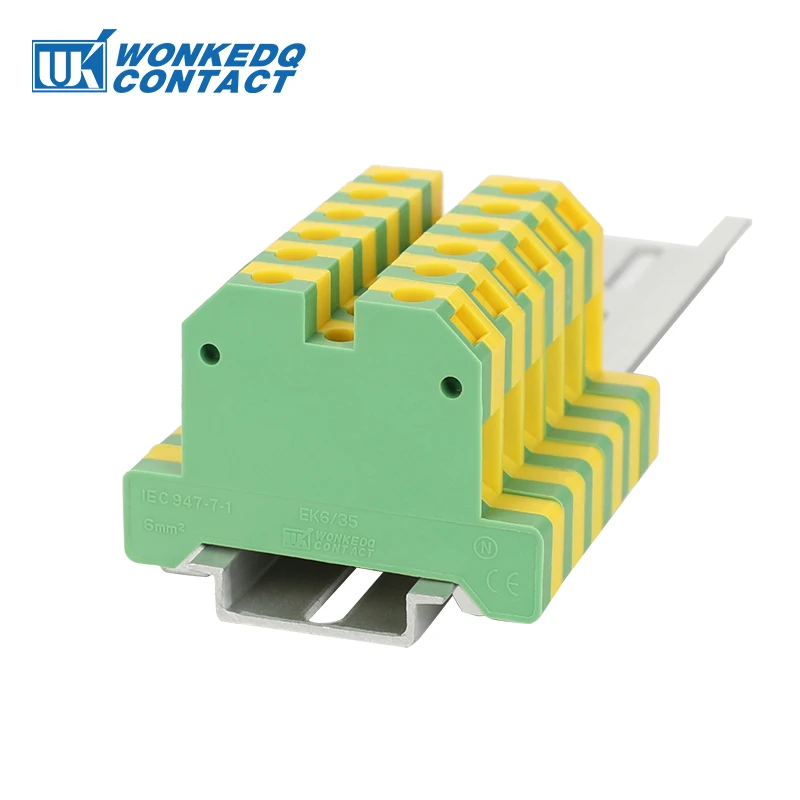

With universal foot which can be installed on Din Rail NS 35. The three different clip-on foot designs available for different types of Din Rails.
-
It can connect two conductors with ease, even large conductor cross sections are not a problem.
-
Electric potential distribution can use fixed bridges in the terminal center o.
-

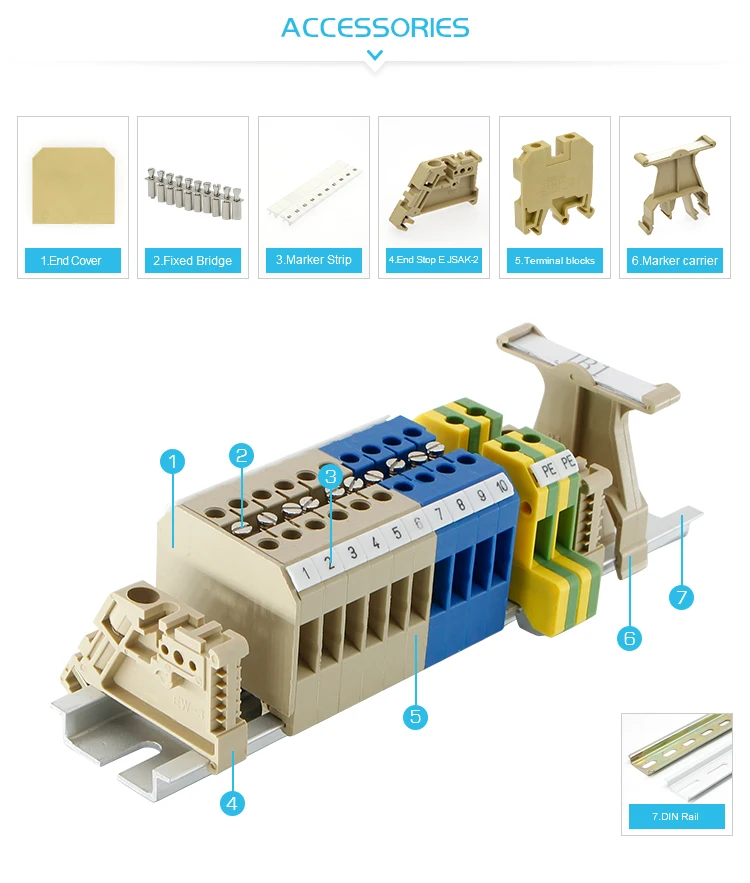

Large range of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.
ACCESSORIES ( Click the pictures to the links)
|
MARKER STRIPS |
END STOP |
MARKER CARRIER |
DIN RAIL |
DESCRIPTION
|
Type No. |
Details |
Accessories |
|
EK 6-35 |
Cross section: 6mm²
L57.5/H41/W8 mm
|
Marker strip: |
|
Model Number |
EK 6/35 |
|
Color |
Yellow/Green, other color can be customized |
|
Length/Wide/Height (mm) |
57.5/41/8 |
|
Connection method |
Screw connection |
|
Material |
Nylon PA66 |
|
Rated Voltage/Current |
800V/41A |
|
Rated Cross section |
6mm2; |
|
Mounting Type |
NS 35/7.5 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
Customized logo are supported |
|
Packing Detail |
24.86g/pc, 40PCS/BOX |
|
Certification |
CE/RoHS/CQC/ISO 9001 |
3. Blocos de Terminais
4. Parafuso Terra Sak 6 Mm² Fio Conector
5. High Quality Renovação da Casa
6. Renovação da Casa

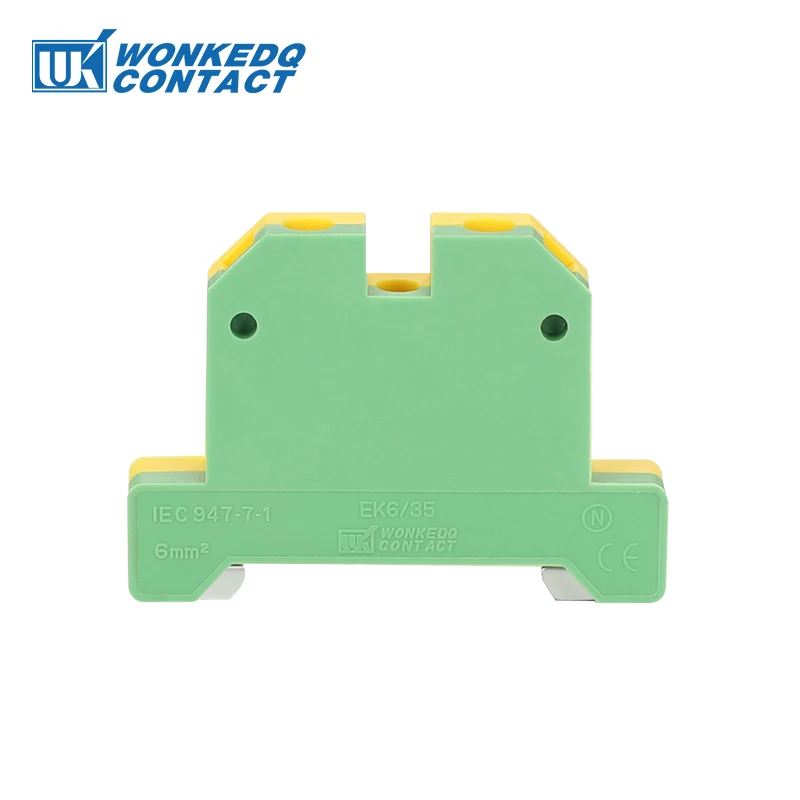

7. Elétrico Montagem no Bloco Terminal Ferroviário Din Ek6 35
